Paper 04: Scale-free Networks & The Geometry of Power Laws

I. Abstract #

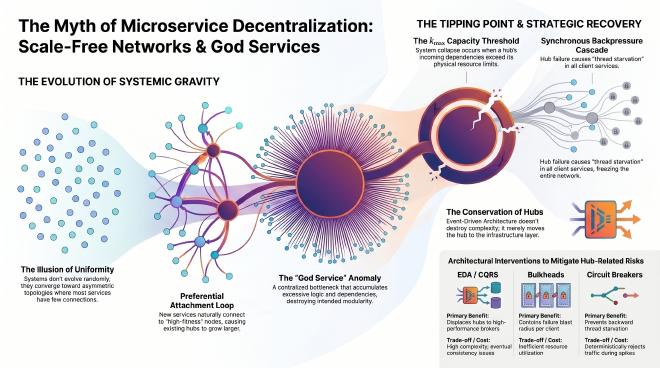

Microservices are sold on a comforting promise: break the monolith, distribute the load, isolate the failures. The Barabási-Albert model says otherwise. Architectures grow through preferential attachment, and that growth produces a heavy-tailed power-law degree distribution every time. The fallout is structural: distributed systems inevitably spawn Hidden Hubs — bottlenecks no one architected, but which exert a kind of systemic gravity. Manage the gravity, or the system manages you.

II. Axiomatic Problem Statement #

The standard story goes like this: split the monolith into microservices, and load distributes linearly across the network. Risk distributes too. Everyone breathes easier. The implicit graph in that story is an Erdős-Rényi random graph — connections uniform, degree distribution Poisson — and the implicit assumption is that more nodes $N$ means proportionally diffused dependency density.

Pull the dependency graph of any real system, and the story collapses. Software ecosystems don’t evolve randomly. They converge toward extreme asymmetry: most services barely connected, a handful of core services mutating into massive hubs. Those hubs accumulate dependencies the way mass accumulates in a star — and quietly install a deterministic single point of failure inside an architecture that was supposed to have none.

III. Theoretical Framework (The First Principles) #

The Barabási–Albert (BA) model gives us the math. It claims something striking: scale-free topologies aren’t an accident — they’re the deterministic outcome of just two mechanisms running together. Continuous growth. Preferential attachment.

When a new node enters the network, it does not connect to existing nodes uniformly. The probability $\Pi(k_i)$ that a new node will form a connection with an existing node $i$ is directly proportional to the current degree $k_i$ of that node:

Where $k_i$ represents the number of edges connected to node $i$. Applying the mean-field theory to continuous rate equations, where each new node introduces $m$ edges, the rate of degree accumulation for node $i$ over time $t$ is expressed as:

Integrating this differential equation yields the asymptotic degree distribution $P(k)$, which exhibits a heavy-tailed power law:

Where $P(k)$ is the probability density function of the degree distribution, and $\gamma$ is the degree exponent, theoretically converging to $\gamma = 3$ in the standard BA model. This mathematical limit proves that the variance of the degree distribution diverges to infinity as the network size approaches the thermodynamic limit ($N \to \infty$), guaranteeing the emergence of supersized hubs.

IV. Architectural Isomorphism #

Translating the abstract graph theory into software architecture metrics reveals the precise mechanics of systemic gravity.

The Directed Network & Zero In-Degree Paradox #

While the classical Barabási-Albert model describes undirected graphs, software dependencies are strictly directed (Service A $\to$ Service B). If we apply pure preferential attachment based solely on in-degree ($k_{in}$), a newly deployed microservice with an initial in-degree of zero would mathematically have a zero probability of ever acquiring its first incoming edge.

To resolve this, we apply Derek de Solla Price’s Model (1976) or the Directed Barabási-Albert Model, which introduces an “initial attractiveness” constant ($a > 0$). This constant represents the intrinsic discoverability or baseline necessity of a newly deployed service:

This isomorphism demonstrates why architectural decentralization fails over time. Through successive Agile iterations, the mathematical law of directed preferential attachment and fitness forces the service dependency graph to accumulate extreme in-degrees at specific nodes, generating the God Service anomaly without explicit architectural intent.

V. Topological Dynamics & The Tipping Point #

Scale-free networks have a strange dual personality. Drop random nodes and the network shrugs. Drop a hub on purpose and it shatters. That asymmetry — robust to noise, fragile to targeted loss — is what sets the stability limits of any distributed system built on this topology.

Boundary Conditions #

Let $k_{max}$ represent the maximum resource capacity (e.g., database connection pool limit, thread pool maximum) of a hub service before requests are queued or dropped. Let $k_{in}(t)$ be the accumulated dependency degree of that hub at time $t$. The system operates normally as long as $k_{in}(t) \times \text{load\_per\_edge} \le k_{max}$.

Tipping Point Analysis & The Physics of Software Cascades #

Collapse arrives when network growth pushes the hub’s in-degree past its hard physical limits. Cross the threshold ($k_{in}(t) > k_{max}$), and the hub starts spiking on latency.

The cascade that follows looks nothing like a power-grid blackout. In cascade-failure models like Motter & Lai (2002), failure spreads via lateral load redistribution — a node dies, its traffic gets shoved to its neighbors, and they buckle next. Microservices don’t reroute that way. When a God Service stalls, traffic doesn’t go anywhere. The cascade runs backwards — what’s called synchronous backpressure. Because the edges are synchronous calls, the hub’s latency immediately drains the thread pools of every Client/Consumer waiting on it. One stuck hub, and thread starvation rolls back through the connected component, freezing the entire topology.

VI. Quantitative Simulation #

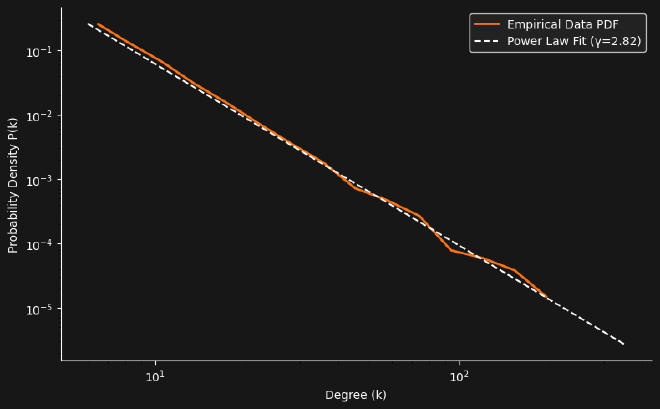

The following simulation results from a Barabási-Albert network demonstrate its degree distribution, applying logarithmic binning to properly visualize the power-law tail without statistical noise.

VII. Architectural Implications & Trade-offs #

If preferential attachment is mathematically inevitable, the only honest move is to build for it — not against it. The countermeasures below don’t break the law. They re-route around it.

Strategic Heuristics #

1. The Conservation of Hubs (EDA & Asynchrony): Restructure the topology using Event-Driven Architecture (EDA) and Command Query Responsibility Segregation (CQRS). It is crucial to understand that complexity is rarely destroyed; it is merely moved. EDA does not defy preferential attachment; rather, it displaces the scale-free hub from the application layer (where capacity is constrained by business logic) to the infrastructure layer (the Message Broker, e.g., Kafka or RabbitMQ). The broker becomes the new hub, but it is mathematically engineered in low-level languages to handle exceptionally high $k_{max}$ physical limits via $O(1)$ disk I/O, effectively neutralizing application-level systemic gravity.
2. Isolate Hub Saturation via Bulkheads: When a hub cannot be eliminated, strictly partition its physical resources (thread pools) per dependent client service. This hard boundary confines resource exhaustion to a single client vector, protecting the mathematical giant component from total disruption.
3. Halt Cascades via Circuit Breakers: Implement deterministic fault barriers that reject traffic the moment hub latency exceeds an acceptable limit, actively preventing thread starvation from propagating backwards through the dependency graph.

Trade-off Matrix #

VIII. References #

• Barabási, A.-L., & Albert, R. (1999). Emergence of Scaling in Random Networks.
• Bianconi, G., & Barabási, A.-L. (2001). Competition and multiscaling in bipartite networks.
• Clauset, A., Shalizi, C. R., & Newman, M. E. J. (2009). Power-Law Distributions in Empirical Data.
• Motter, A. E., & Lai, Y.-C. (2002). Cascade-based attacks on complex networks.
• Price, D. d. S. (1976). A general theory of bibliometric and other cumulative advantage processes.
