Paper 07: Percolation Theory — Why Adding Redundancy Opens Highways for Cascading Outages

I. Abstract #

Intuition says: every replica added is an extra layer of safety, and these layers compound. Real systems do not behave that way. Every redundant link is a new edge on the graph. Any edge that routes service in one direction can route cascading failures in the other. Percolation theory reveals where the tipping point sits; load-dependent cascade models explain why failures propagate along those edges. A network dense enough to maintain service continuity is also dense enough to conduct outages across the entire cluster. Architectural resilience is therefore about choosing which edges to sever, not how many to add. Three measurable consequences: size headroom for post-failover load rather than peacetime load, catalog the shared dependencies that all replicas rely on, and prune the graph with cells rather than trusting replica counts.

II. What “Adding Redundancy Adds Safety” Misses #

A 43-second network partition between two data centers. Twenty-four hours of data inconsistency and degraded service. Between those two numbers, not a single physical server broke. There was only an automated failover mechanism executing precisely as designed¹.

The intuition behind redundancy relies on comfortable arithmetic. Redundancy means running multiple identical copies of a service so that when one fails, another takes over. Failover is the automated rerouting of traffic from a failing instance to an active survivor. If an instance has a 1% failure probability, two replicas in parallel appear to fail with a joint probability of 0.01%. That multiplication underpins every availability spreadsheet I have ever seen presented in architecture reviews.

That multiplication holds only when replicas fail independently. In production systems, that condition almost never holds. Almost no one verifies this independence in practice. Replicas frequently share a top-of-rack switch, a power distribution unit, a configuration store, or handle requests from a shared user cohort exhibiting correlated spikes.

A vivid parallel exists in the daily traffic of Ho Chi Minh City: the river crossings over the Saigon River. Under normal conditions, the Saigon Bridge, the Thu Thiem Bridge, and the Thu Thiem Tunnel easily handle their individual traffic streams. When one bridge is blocked, its vehicles do not vanish; they divert to the surviving corridors. An alternative corridor operating with only 20% spare capacity that suddenly receives a 50% influx of vehicles quickly grinds to a halt, spilling its own traffic onto the third route. No physical bridge collapsed; they were immobilized by the detour mechanism itself.

In software systems, this collapse unfolds even faster. Vehicles stuck on a bridge simply wait. Timed-out requests vanish while discarding all intermediate compute spent processing them. I detailed that mechanism in Paper 06 and will not rehash it here. Remember only this: software throughput collapses far steeper than vehicular flow.

The math that architectural diagrams omit is simple enough to do in your head. An Availability Zone (AZ) is an isolated data center facility provided by cloud vendors, equipped with independent power and networking. Suppose a cluster runs across 3 AZs, with each AZ operating at a baseline utilization. If 1 AZ drops offline, the remaining 2 must absorb the entire workload—a 1.5x increase for each survivor. To survive that shift without collapsing, peacetime utilization across the cluster cannot exceed two-thirds (66.7%).

Running 3 AZs at 70% utilization creates a cluster with zero margin for error, even while every monitoring dashboard glows green. This is the first concrete threshold of this paper. I deliberately chose a number simple enough to calculate mentally before writing any documentation.

On an architecture diagram, the dashed arrow labeled failover inspires confidence. It traces the intended flight path of requests during an outage. It completely omits the direction in which secondary load rebounds.

A second, less discussed failure mode occurs when multiple replicas die simultaneously from a common cause. The control plane manages orchestration—determining workload placement, active configurations, and service discovery records. The data plane directly serves customer traffic. Three replicas spread across three AZs that all poll configurations from a unified control plane are not three independent entities; they are tethered to a shared dependency.

What the architecture lacks is not more replicas. What it lacks is a topological understanding of its dependency graph. A dedicated branch of mathematics was built to solve exactly this problem, born from an investigation into gas masks.

III. Percolation Theory: Where the Threshold Sits, and What Pushes It Down #

What Percolation Is, and Where the Threshold Sits #

Percolation carries its literal physical meaning of fluid seeping through a porous medium. Simon Broadbent and John Hammersley (1957) formulated the theory to investigate a practical question: could poisonous gas penetrate porous granular carbon in gas mask filters?

Before proceeding, three terms require formal definition. A graph is a mathematical set of points connected by lines. A node is a discrete point. An edge is a link connecting two nodes. Throughout this paper, a node represents a server instance or service, while an edge represents an API call, a data replication stream, or a failover path.

Percolation theory asks a single foundational question: how intact must a network remain for an end-to-end path to exist? It manifests in two forms. Site percolation: each node remains functional with a given survival fraction—corresponding to operational servers in a cluster. Bond percolation: each edge remains open with a given open fraction—corresponding to working network links or API channels.

The intricate alley network (hẻm) of Ho Chi Minh City provides an intuitive mental anchor for both models. When main boulevards gridlock, commuters divert into the alleys. Navigating across the neighborhood depends not on any single alleyway, but on the overall fraction of open passages. A barricaded building represents an unusable site; a flooded alley represents a broken bond.

A fully connected alley network is good news for evening commuters. It is equally good news for urban floodwaters: water spilling into one alley drains directly into adjacent ones, inundating the entire ward along the very paths people use to travel. Shifting from the perspective of where service flows to where outages travel on the exact same graph yields two diametrically opposed conclusions. This entire paper lives in the tension between those two interpretations.

The central concept of the theory is the giant connected component. This is the contiguous connected subgraph that spans an extensive fraction of the entire network. Below a critical threshold of node or edge availability, the network disintegrates into disconnected fragments. Above that threshold, an extensive spanning cluster suddenly emerges. That critical boundary is known as the percolation threshold.

A few baseline numbers anchor the intuition. On a two-dimensional square grid, the bond percolation threshold is exactly 0.5—half the edges. The site percolation threshold is approximately 0.593. On an infinite random graph where each node connects on average to 4 other nodes, the percolation threshold is 0.25.

Translating that last number into operational terms: a cluster of 200 microservices connected at random must lose 75% of its instances before global connectivity disintegrates completely. That was the figure I once relied on to feel secure. It is mathematically accurate, yet it answers a completely different question than the one production actually poses.

Why Dense Networks Resist Random Failure, and Why That Is Not Good News #

Michael Molloy and Bruce Reed (1995) established a counterintuitive theorem. Whether a giant component exists depends neither on network size nor total edge count. It depends primarily on the variance of the node degrees. A graph where every node connects to 4 neighbors behaves completely differently from one where most connect to 2 while a few connect to 200, even when both share an identical average degree.

Real-world service graphs belong firmly to the second category. There are always structural hubs—authentication proxies, payment gateways, core databases—queried by hundreds of upstream services. Reuven Cohen et al. (2000) uncovered the direct consequence: higher degree variance drives the percolation threshold drastically downward, making such networks remarkably resilient against random node failures. You can pull the plug on dozens of servers at random and the cluster stays functional, simply because the odds of hitting a central hub by chance are minuscule.

That resilience is real, and it deserves full recognition before examining its shadow side. Netflix’s Chaos Monkey—which terminates random production instances to test cluster durability—succeeds in large part because of this exact topological property.

Then comes the pivot, which operates across two distinct layers.

The first layer: Réka Albert, Hawoong Jeong, and Albert-László Barabási (2000) proved that the very hubs granting random fault tolerance render scale-free topologies extraordinarily vulnerable to targeted removal. Real production failures do not strike at random. Failures follow load, load concentrates on hubs, and the default operating failure mode mirrors the absolute worst-case scenario in graph theory².

The second layer runs deeper and forms the central thesis of this paper. When asking “can the network maintain end-to-end reachability?”, we want the percolation threshold to be as low as possible. When asking “can a localized error spread across the entire infrastructure?”, we desire the exact opposite—because higher degree variance lowers the critical threshold required for an outage to percolate across the system. The same structural metric governs both phenomena with inverted signs. No topology can simultaneously optimize for both.

Summarizing the deep dive: keeping total servers and connections constant while concentrating links onto a handful of hubs collapses the percolation threshold from 25% to under 10%. In heavily skewed architectures, it drops below 2%. That represents the tiny fraction of functional connectivity required for a failure to span the entire cluster.

When One Network Must Rely on Another #

Revisit the earlier scenario of three replicas across three AZs. On an architecture slide, they appear as three independent nodes. In production, all three resolve addresses via a shared internal DNS or pull configuration from a centralized service discovery cluster. Service discovery acts as the phonebook of a microservices architecture: when a service needs to talk to a peer, it queries this registry. Those are not three independent replicas; they are two interdependent networks coupled together.

Sergey Buldyrev and colleagues (2010) formalized this exact mechanism, inspired by the 2003 nationwide blackout across Italy where the power grid and its communication control network dragged each other down. Their finding: when two networks are mutually dependent, structural failures loop recursively between the layers. Network A loses nodes to a hardware fault, causing Network B to lose nodes dependent on A. The disintegration of B then isolates healthy nodes in A, and the cascade loops recursively.

That recursive loop transforms the very nature of failure. An isolated network degrades along a smooth, continuous curve. Interdependent networks collapse off a discontinuous cliff: the system appears completely stable, until it vanishes instantly.

The definitive metric is the most critical takeaway of this paper. For an average degree of 4: an isolated network can withstand the loss of 75% of its nodes before its giant component dissolves. But coupling it with a bidirectional control plane triggers total collapse after losing just 39% of nodes. And it does not degrade gradually—it collapses in a single step³.

Paper 06 derived this cliff-like drop from queueing dynamics: an overloaded system does not slow down gracefully; its goodput falls off a cliff and locks up. Here is that exact same cliff, derived purely from network connectivity without mentioning queueing once. Two divergent analytical paths lead to one immutable conclusion: production distributed systems do not degrade linearly; they transition via discontinuous phase jumps.

IV. From Graphs to Your System: The Mapping Table #

To translate these concepts into production engineering, one must distinguish two maps that are frequently conflated.

• The Service Graph. Who calls whom to fulfill user requests. This is the diagram every engineering team maintains on Confluence.
• The Failure Graph. If an error originates here, what else breaks? It encompasses every edge in the service graph, plus all failover corridors, shared resource pools, and control plane dependencies.

The failure graph is always far denser than the service graph, and it is the true graph that determines the percolation threshold. An architecture diagram might display 12 clean arrows. The failure graph includes all 12 arrows, plus every hidden dependency omitted to keep the diagram readable.

The table below serves as a Rosetta Stone translating between mathematics, physical analogies, and production software systems:

Why the Outage Is Baked into the Topology #

The structural vulnerability develops through four quantitative phases:

1. Redundancy generates new edges. Every automated failover route from Service A to Service B is an edge on the failure graph, even if it never appears on the business workflow map. Three AZs configured for mutual failover do not form three independent islands; they form a three-node triangle with all pairs interconnected, containing 3 hidden edges that nobody tracks.

2. Additional edges inflate degree variance, collapsing the threshold. Redundant failover paths almost universally target already high-capacity hubs. What is trusted to handle high load is intuitively chosen to absorb failover, echoing the preferential attachment discussed in Paper 04. Consequently, degree variance outpaces average degree, pulling the percolation threshold downward according to Molloy–Reed. In Simulation A, this concentration drops the percolation threshold from 0.249 to 0.093.

3. Shed load propagates across active edges. When a node dies, its load diverts to neighbors. Neighbors survive only if that incremental load fits within their remaining headroom. The 3-AZ arithmetic generalizes into a single rule: for n zones, losing 1 zone requires headroom of at least 1 divided by (n minus 1). Three AZs require 50% headroom; five cells require only 25%.

4. Shared dependencies convert gentle degradation into abrupt collapse. Recursive pruning between coupled layers eliminates gradual degradation; it preserves the illusion of stability until taking down the entire cluster in a single step. The structural tolerance drops from losing 75% of nodes to losing just 39%.

Step 3 provides the strongest quantitative argument for cell-based architecture, and it is a single line of arithmetic. Section V explores how outages navigate these paths; Section VI validates all four steps with simulations.

V. Which Paths Failures Take, and Why Pruning Paths Stops Them #

Three Paths of Propagation, Disentangled #

• Propagation via dependency. Service A calls Service B; Service B hangs; Service A blocks waiting on threads until its thread pool exhausts and it crashes. This is the failure mode analyzed in Paper 04, and the exact vector circuit breakers were invented to sever.
• Propagation via load redistribution. Node A crashes; Node A’s incoming requests divert to Node B; Node B exceeds capacity and crashes; the combined load diverts to Node C. This is the vector directly opened by redundancy, and the central focus of this paper.
• Propagation via common-mode dependencies. Service A and Service B never call each other, share no load, and serve unrelated business domains. Yet both poll dynamic configuration from a shared cluster. When that configuration engine returns malformed data, both services crash within the same minute, despite no direct edge connecting them on the service map.

The third path is the most insidious because it leaves zero footprint on application flowcharts.

Where the Threshold Sits #

The condition for a cascading failure to extinguish can be stated in a single sentence: each failing node, on average, must cause the demise of fewer than one subsequent node. This directly mirrors the basic reproduction number familiar from epidemiology. If this number is greater than 1, the outage spreads epidemically; if it is less than 1, the cascade dies out.

That reproduction rate represents the product of two parameters: edge density and load coupling tightness. Edge density measures how many alternate branches load diverts to when a node fails. Coupling tightness measures whether receiving nodes possess sufficient headroom to absorb diverted traffic without buckling.

The architectural consequence is unambiguous: you have exactly two knobs. Cells sever edge density. Headroom loosens coupling tightness.

Because the tipping point depends on the product of both factors, you cannot rely on a single knob in isolation. In production, you cannot prune 100% of edges, nor will any infrastructure budget approve infinite headroom. You must turn both knobs concurrently to force the reproduction multiplier below 1. Simulation B in Section VI demonstrates this necessity with uncomfortable precision.

The Cut of Cell-Based Architecture #

The diagram below maps these three propagation vectors on a unified topology, highlighting where cell-based architecture cuts the graph. Solid arrows represent actual failure propagation paths. The dashed arrow represents an edge deliberately eliminated by design—cell-based architecture is fundamentally the operational decision not to draw that link.

The critical detail of this diagram is arrow 3. Cell A and Cell B share no direct operational edges, yet Cell B collapses via the shared control plane. Pruning horizontal links is necessary, but it remains insufficient if vertical dependencies remain coupled.

Two Real-World Postmortems #

AWS EBS, April 2011 — When Redundancy Became the Culprit. Elastic Block Store (EBS) provides network-attached virtual disks for AWS compute instances, mirroring storage blocks across replica pairs. During a routine network upgrade in the US-East-1 region, traffic was inadvertently routed onto a secondary low-capacity network. Storage nodes instantly lost contact with their mirrored counterparts.

At this point, software executed precisely as designed. When an EBS node loses its replica, it immediately queries the cluster to allocate free storage capacity and instantiate a replacement mirror—a mechanism known as re-mirroring, created specifically to prevent data loss. The fatal flaw was that thousands of storage nodes initiated re-mirroring simultaneously. The resulting storm exhausted network bandwidth and control plane compute capacity across the cluster, crippling the orchestration tier⁴.

Approximately 13% of EBS volumes within the affected zone became stuck in a degraded state, requiring four days of manual recovery. The outage cascaded into Relational Database Service (RDS)—including multi-AZ deployments specifically architected and marketed to survive single-AZ failures. This was the Motter–Lai cascade running live in production: redundant failover load suffocated the infrastructure that gave birth to it.

Meta/Facebook, October 4, 2021 — When a Shared Control Plane Brought Down Everything. A routine maintenance command inadvertently severed backbone network connectivity across global data centers. Automated auditing tools designed to block malformed commands had a software defect and silently failed.

The subsequent behavior offers the deeper architectural lesson. Facebook’s authoritative DNS servers were programmed with self-health checks: if they lost connectivity to upstream data centers, they concluded they were unhealthy and automatically withdrew their BGP routing advertisements. BGP is the routing directory of the Internet, advertising which paths reach which destinations. For an isolated DNS server, withdrawing routes is sensible defensive behavior.

When the global backbone dropped, every DNS server worldwide reached that same conclusion simultaneously. All withdrew their BGP routes in unison, erasing Facebook, Instagram, and WhatsApp from the global Internet for roughly six hours. The infrastructure did not crash; it executed an automated withdrawal through its own defensive protection logic.

Recursive pruning completed the trap. Internal communication platforms, building badge-access systems, and engineers’ remote debugging consoles all depended on the very internal network that was now isolated⁵. The control plane failed from severed transport; the recovery tools failed from the absent control plane. This is Buldyrev’s interdependent catastrophe written in production postmortems rather than mathematical equations.

VI. Three Simulations for Three Arguments #

Each simulation tests one core thesis. Fully reproducible Python scripts with locked random seeds are archived in the series asset repository; every figure below reflects empirical simulation output, not theoretical approximations.

Simulation A — Critical thresholds exist, and random failures differ profoundly from targeted attacks. I compare two 2,000-node graphs with an average degree of 4: a random graph without hubs and a graph with hubs. Nodes are pruned under two strategies—uniform random removal, and targeted removal targeting the highest-degree nodes first—while tracking the size of the remaining giant connected component.

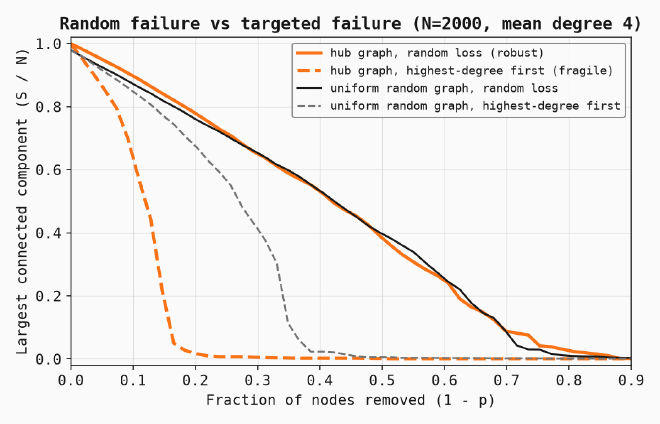

Reading the chart: the horizontal axis tracks the fraction of removed nodes; the vertical axis shows the fraction of the network remaining in the giant component. Orange curves denote the scale-free network; dark grey curves denote the random graph. Solid lines represent random removal; dashed lines denote targeted removal.

The gulf between the two orange curves captures the entire thesis. Under random node removal, removing 20% of nodes leaves 78% of the scale-free network intact. Target that same 20% at the highest-degree hubs, and surviving connectivity collapses to 1.7%. The same network, the exact same count of lost nodes, yet the outcomes diverge by a factor of 45.

Killing a few servers at random and watching the system survive used to reassure me that the architecture was robust. This simulation showed me it was only proof that I had pulled the plug on machines nobody was asking for.

Simulation B — Load-induced cascades and the true cost of headroom. This implements the Motter–Lai (2002) model on a 400-node scale-free graph. Baseline load on each node reflects betweenness centrality: the count of shortest paths across the network that traverse that node⁶. Capacity equals baseline load multiplied by an excess safety margin—the headroom ratio. We knock out a single node, recalculate shortest-path load distributions, trigger failures for any nodes exceeding capacity, and iterate until the cascade stabilizes.

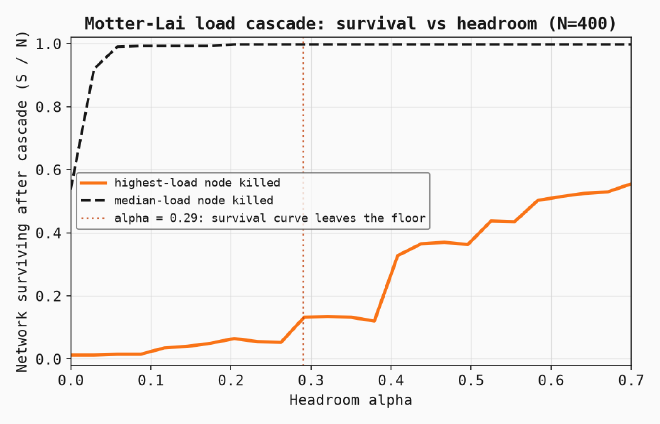

Reading the chart: the horizontal axis represents the headroom ratio; the vertical axis indicates the fraction of the network surviving in the giant component after the cascade halts. The dashed dark line reflects knocking out a median-load node; the solid orange line represents knocking out the single highest-load hub.

The two curves tell starkly different stories. Knocking out a median node: a mere 6% headroom enables 99% of the network to survive, plateauing immediately. The revealing observation is at zero headroom, where even that minor failure destroys 46% of the network—without spare capacity, nothing is free.

The orange curve exhibits an alarming trajectory. Knocking out the highest-load hub at zero headroom leaves only 1.3% of the network intact. The curve hugs the floor below 7% until reaching a headroom ratio of approximately 0.29. Then it climbs in jagged steps: 13% at 0.29; 33% at 0.41; and 50% at 0.58. At 0.70—meaning nodes operate at 59% peacetime capacity—the network still preserves only 55% of its nodes.

The takeaway is sobering, yet validates Section V: headroom is only one of two knobs, and it is insufficient on its own. Buying headroom beyond what any financial controller would approve still fails to protect a topology that routes all traffic through concentrated hubs. Total stability requires turning the other knob: severing edges. Because betweenness serves here as an analytical proxy for load, the absolute values do not translate directly to production; what translates definitively is the shape of the curves and the distance between them.

Stated simply: partitioning a cluster into more autonomous zones reduces the headroom required per zone, because displaced load distributes across more survivors. That is the quantitative financial case for cell-based architecture, rooted in algebra rather than architectural taste.

Simulation C — Coupling two networks transforms a gentle slope into a vertical cliff. Two 2,500-node random graphs sharing an average degree of 4, coupled via bidirectional one-to-one dependencies. We remove a fraction of nodes at random from the first layer, then execute recursive pruning between the two networks until reaching equilibrium. The baseline comparison is an isolated single network of identical size and connectivity.

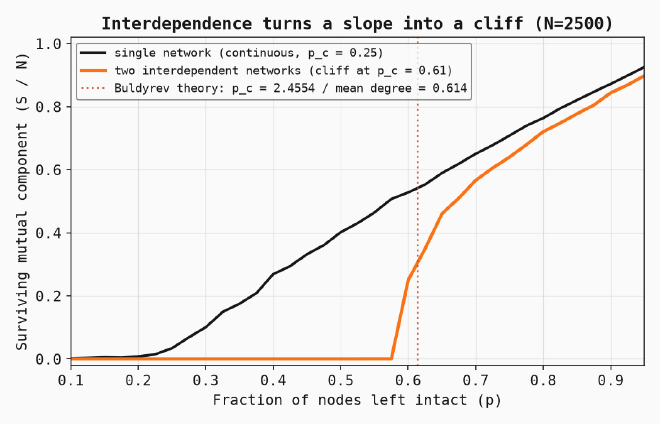

Reading the chart: the horizontal axis tracks the fraction of nodes initially intact, moving left to right toward an undamaged state. The vertical axis shows the fraction of nodes surviving in the mutual giant component. The dark curve represents an isolated network; the orange curve denotes the interdependent pair; the vertical dashed lines indicate theoretical thresholds.

The isolated dark curve lifts off the floor near 0.25 and rises continuously, matching classical theory. The interdependent orange curve stays pinned at zero until reaching 0.575. This means losing 42.5% of nodes destroys all mutual connectivity. Then it jumps discontinuously to 25% at 0.60 and 46% at 0.65. There is no intermediate transition zone.

Identical server counts, identical edge counts, with only a vertical dependency coupling them: survival resilience shifts from losing 75% to losing just 39%. The curve transforms from a slope into a cliff. To be rigorous regarding the single network: the 0.25 threshold marks where the giant component vanishes entirely, not where the system remains commercially viable. Just above threshold, the surviving cluster holds only a few percent of instances. The percolation threshold defines the boundary of existence, not the boundary of acceptable service.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46

import numpy as np
import networkx as nx

# A — Node removal under two strategies, measuring giant connected component
def evaluate(G0, mode, N, steps=50):
    G, nodes = G0.copy(), list(G0.nodes())
    if mode == "random":
        np.random.shuffle(nodes)
    else:                                    # Targeted attack: highest-degree nodes first
        nodes.sort(key=lambda n: G.degree(n), reverse=True)
    out, prev = [], 0
    for idx in (np.linspace(0, 0.9, steps) * N).astype(int):
        G.remove_nodes_from(nodes[prev:idx]); prev = idx
        out.append(len(max(nx.connected_components(G), key=len)) / N if len(G) else 0.0)
    return out

# B — Load-based cascade: knock out 1 node, redistribute load, prune overloaded nodes
def cascade(G0, load0, alpha, target, N):
    G = G0.copy()
    cap = {n: (1 + alpha) * load0[n] for n in G}
    G.remove_node(target)
    while len(G):
        load = nx.betweenness_centrality(G, normalized=False)
        dead = [n for n in G if load[n] > cap[n]]
        if not dead:
            break
        G.remove_nodes_from(dead)
    return len(max(nx.connected_components(G), key=len)) / N if len(G) else 0.0

# C — Recursive pruning between interdependent networks until equilibrium
def mutual_component(GA, GB, alive_A, alive_B):
    while True:
        prev = len(alive_A) + len(alive_B)
        for G, keep, other in ((GA, "A", "B"), (GB, "B", "A")):
            live = alive_A if keep == "A" else alive_B
            sub = G.subgraph(live)
            if not len(sub):
                return set(), set()
            live = set(max(nx.connected_components(sub), key=len))
            # Assumes 1-to-1 dependency mapping between node IDs of network A and B
            if keep == "A":
                alive_A = live; alive_B &= alive_A
            else:
                alive_B = live; alive_A &= alive_B
        if len(alive_A) + len(alive_B) == prev:
            return alive_A, alive_B

VII. Three Things to Do, and What Each Costs #

Before prescribing remedies, a valid counterargument must be addressed. Resource isolation opposes the foundational economic premise of cloud computing. Pooling resources so components absorb each other’s traffic swings is the source of infrastructure efficiency; partitioning into cells deliberately forfeits a fraction of that economy.

For small and medium systems, a shared cluster with disciplined headroom remains the sensible engineering choice, and I would not advise otherwise. The boundary appears only when the blast radius of an uncontained outage exceeds the operational savings of resource consolidation. The three practices below apply once you cross that threshold.

Distinguish these immediately from Paper 04, as they sound superficially alike. Bulkheads and circuit breakers in Paper 04 partition resources within an individual service instance to prevent thread pool exhaustion. The three practices below sever the macro graph itself.

1. Prune the graph with cells, rather than trusting replica counts.

Cell-based architecture: each cell is a self-contained, complete deployment of the system—application tiers, caches, and datastores—with customers pinned deterministically to a specific cell. What separates it from conventional multi-instance deployments is a single structural rule: no edges exist between cells. No cross-cell API calls, no shared database clusters, no cross-cell failover. If the edge does not exist, a giant failure component has no medium through which to materialize.

Shuffle sharding takes this one step further. Rather than assigning customers to rigid isolated clusters, it maps each customer to a unique mathematical combination of nodes, making it statistically improbable for any two customers to share an identical footprint. A client issuing a toxic query crashes only their assigned node combination; neighboring clients share at most a subset of those nodes, remaining operational.

The question to ask your engineering team: what fraction of customers does our worst-case failure impact—and is that number enforced by topology, or by luck?

2. Size headroom for post-failover load, not peacetime load.

Apply the exact formula derived in Deep Dive 2: for n partition zones, you need headroom of at least 1 divided by (n minus 1). Expand that calculation into a sanity check for every dashed failover arrow on your architecture diagrams. When this failover fires, where does load divert, and what baseline utilization is the recipient running in peacetime? If no one knows, that failover path is an unverified assumption, not a resilience measure.

This is the third distinct question about headroom posed in this series. Paper 05 asked whether headroom prevents drift toward the edge of criticality. Paper 06 asked at what inflection point throughput collapses. Paper 07 asks where headroom lives, and whose displaced load it is reserved to absorb.

The question to ask your engineering team: if one AZ drops right now, what does utilization reach on the surviving two—and who knows that number without having to guess?

3. Catalog the shared dependencies all replicas rely on.

For every pair of redundant components, inventory every dependency both require to function. This includes DNS, service discovery, configuration stores, authorization systems, certificate authorities, deployment pipelines, and observability agents. Most ironically, it also includes VPNs and bastion hosts on-call engineers need during an incident. Every entry on that list represents an interdependent edge from Section V that collapses three replicas into one.

The technical countermeasure is static stability: the data plane continues operating using locally cached configuration whenever the control plane becomes unreachable. The trade-off is tangible: the cluster operates on stale state, and in financial workflows, stale can mean incorrect. Choosing between localized, controlled inconsistency and total cluster collapse is a conscious trade-off, not a foregone conclusion.

This is the most unglamorous of the three practices. It generates no elegant architecture diagrams, inspires no conference keynotes, and delivers a spreadsheet. It is also the only discipline capable of uncovering dependencies that exist on no diagram.

The question to ask your engineering team: if service discovery stops responding for 30 minutes, does the cluster continue serving traffic, or does it freeze?
