The Charge Paradox: A Historical Mistake That Shaped Electronics

1. Franklin’s Coin Flip #

Anyone who studies electricity has to live with a small lie: on a schematic, current flows from $(+)$ to $(-)$, while the electrons doing the actual work run the other way. An entire industry navigates by a sign convention that is literally backwards. It all traces to one man, one experiment, and a coin flip made when nobody knew electrons existed.

In the mid-18th century, Benjamin Franklin proposed the single-fluid theory: electricity is an invisible fluid that flows from where there is more of it to where there is less. For its time this was a good model — it explained why two rubbed objects attract, and why touching them ends the effect. Franklin set the convention: an excess of fluid is positive $(+)$, a deficit is negative $(-)$.

So far, so reasonable. The problem is the next step: he had to decide which object had the excess.

Franklin rubbed a glass rod with silk. With no instrument that could see down to the particle level, he chose by intuition: the fluid moves from the silk to the glass. Glass is $(+)$, silk is $(-)$. A binary choice, no data, exactly 50% odds.

Reality runs the other way. Friction strips electrons off the glass and deposits them on the silk. The glass rod loses particles and was labelled as having an excess $(+)$. Because of that guess, the conventional current direction $(+) \to (-)$ the whole world uses is off by exactly 180 degrees from the real path of the electron.

2. Thomson Catches the Culprit, 150 Years Later #

Fast forward 150 years. In 1897, J.J. Thomson found the electron using a cathode ray tube — essentially a glass tube with the air pumped out and an electrode at each end. Apply voltage and something invisible shoots from one end to the other, making the glass glow where it lands. Nobody knew what the beam was. Thomson investigated by placing electric and magnetic fields across its path and watching how it bent.

The result was clear:

• The beam was repelled by the negative $(-)$ electrode.
• The beam was attracted to the positive $(+)$ electrode.

By basic electrostatics — like signs repel, opposite signs attract — only one conclusion fits: the particle is pulled toward the positive terminal, so the particle itself must be negatively charged.

And that settled it. The electron, the particle that produces current in every circuit on the planet, was assigned the symbol of deficit $(-)$ — because it arrived late, into a coordinate system that had been labelled backwards a century and a half earlier.

3. Why Nobody Fixed It: Path Dependence #

The obvious question: once the error was known, why not swap the signs and give the electron its $(+)$ back?

The answer is a concept called path dependence — dependence on the road already taken. The idea is simple: an early choice, however arbitrary, becomes nearly unfixable once millions of things are built on top of it, not because it is right but because the cost of changing it is enormous. The QWERTY keyboard is the classic example; current direction is a heavier one.

By the early 20th century, Franklin’s convention was embedded in the entire infrastructure of the Industrial Revolution: Maxwell’s electromagnetic equations, thousands of Edison and Tesla patents, every circuit diagram, every physics textbook on Earth. Flipping the electron’s sign meant rewriting all of it — and every practicing engineer relearning their trade.

There is a second reason, and it is the one that makes the situation tolerable: mathematically, both descriptions produce identical results. A negative particle moving left produces exactly the effect of a positive particle moving right. Every formula returns the same answer, as long as the sign is applied consistently throughout.

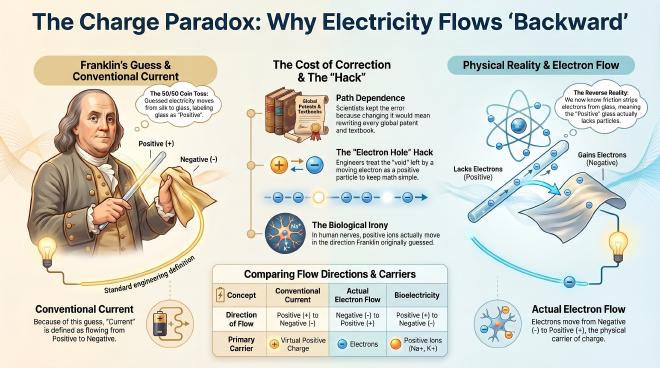

So science took the pragmatic route: keep the convention, and separate two ideas cleanly — conventional current (running $(+) \to (-)$, used in every schematic) and electron flow (running the other way, what physically happens). Both are correct; they are two bookkeeping systems for one phenomenon.

4. How Electronics Lives With the Paradox #

That separation left a few entertaining consequences:

• The battery in your drawer. The $(+)$ on the nub of an AA cell makes everyone assume electricity leaves from there. The opposite is true: electrons pile up at the flat bottom, the end marked $(-)$. Switch a device on and they race through the wire from the $(-)$ base up to the $(+)$ tip. The $(+)$ is a signpost for the conventional current, not for the particles.
• Holes. To spare semiconductor engineers a lifetime of backwards arithmetic, solid-state physics invented a trick: instead of tracking the electron moving left, track the empty spot it just vacated, which moves right. That empty spot is treated as a positively charged particle and given a name: a hole. It is not a real particle — there is no “hole particle” anywhere — but it behaves enough like one that every equation works out, and works out in the conventional direction. A trillion-dollar semiconductor industry does its arithmetic on a particle that does not exist.
• Electricity in your body. The sharpest irony lands here. Nerve impulses do not run on electrons the way copper wire does. They run on genuinely positive ions — sodium $\text{Na}^+$ and potassium $\text{K}^+$ — moving across cell membranes. Which means that inside your body, the charge carriers really do travel $(+) \to (-)$, exactly like the positive fluid Franklin guessed at. He guessed wrong about glass and silk, and right about his own nervous system.
